Premixed combustion control technology

Up to 98% Thermal Efficiency

The design idea came from the car’s engine concept

Super high efficiency, full series reach first-level of energy efficiency rating

The design concept was inspired by car engines. Dyhot’s premixed combustion control system calculates the required hot water demand, and premixes gas and air before combustion. Dyhot’s patented DYNA-PIPE heat exchange technology uses 37 to 43 heat exchange tubes for simultaneous heat exchange. The design of special stainless steel-coated aluminum extrusion increases heat conduction area, quickly and evenly transfers heat, and efficiently converts heat into hot water supply. All series of products reach first-level of energy efficiency rating with up to 98% thermal efficiency, making them among the top in the world. We maximize every unit of energy.



  • Dyhot’s patented DYNA-PIPE heat exchange technology uses multiple heat exchange tubes for simultaneous heat exchange. The design of special stainless steel-coated aluminum extrusion increases heat conduction area, quickly and evenly transfers heat, and efficiently converts gas heat into hot water supply.

  • We use Bekaert's metal fiber burner, the industry's top leading manufacturer, which has undergone more than 500,000 cold and hot cycle tests to ensure the burner's 15-year service life. The said metal fiber burner has obtained the Blauer Engel/Blue Angel and GasTech Environmental Certification as well.

  • We develop and produce water heaters with the spirit of top car manufacturing, adopting the top-level fully premixed combustion system of EBM-Papst, a German manufacturer, and a major car parts factory for producing luxury cars.

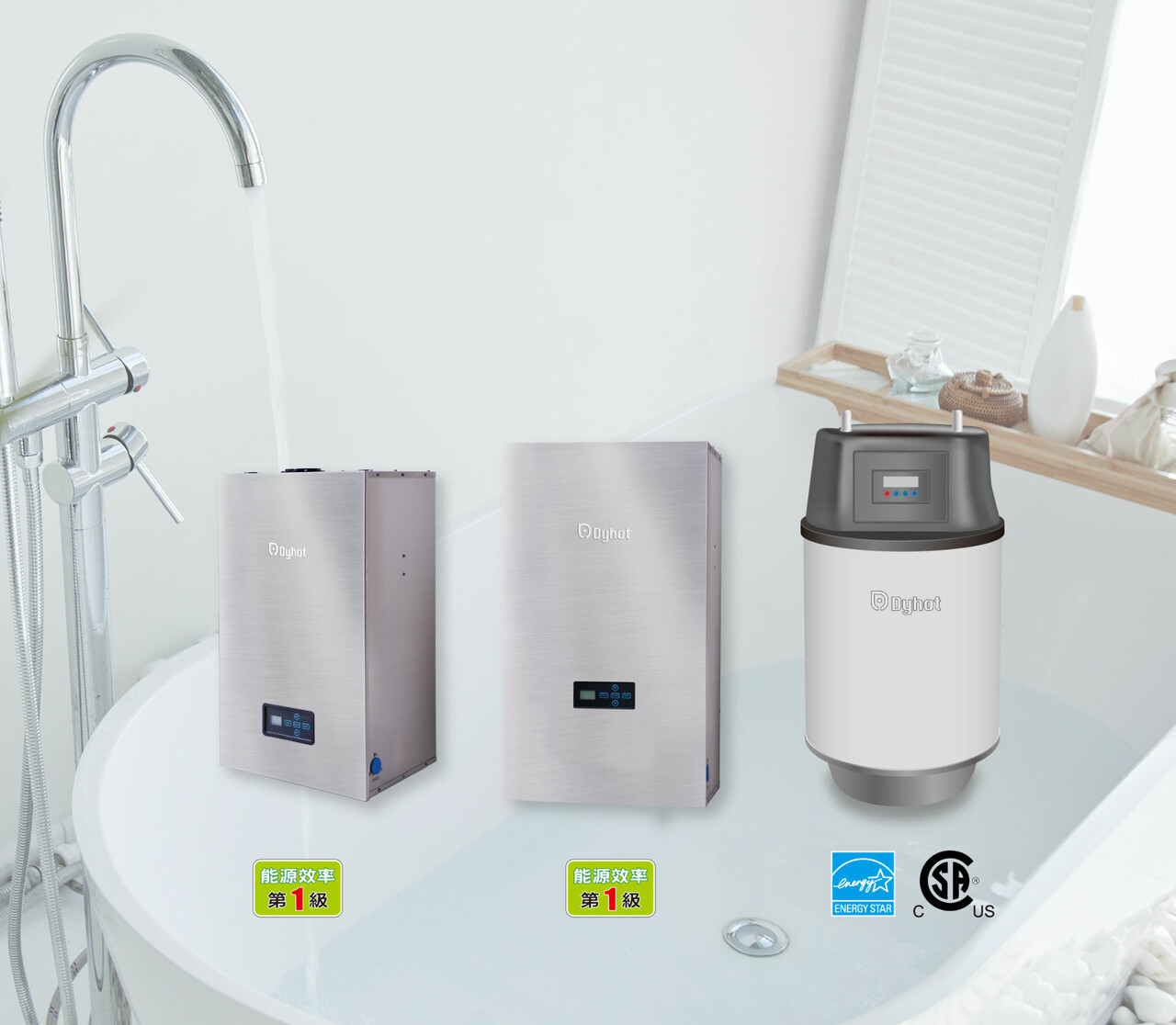

Super high efficiency, full series reach first-level of energy efficiency rating

Dyhot's premixed combustion control water heaters are capable of solving the problems that traditional gas water heaters cannot. They burn completely and produce lower carbon emissions (CO < 100ppm), which is 1/14th of the Taiwan standard (1400ppm), allowing consumers to enjoy the fun of bathing while avoiding "Carbon Monoxide Poisoning". Dyhot's premixed combustion control water heaters have passed the Ultra Low Nox emission testing standard established by the South Coast Air Quality Management District (SCAQMD), which ensures that our living environment is not affected by acid rain. By using Dyhot's premixed combustion control water heaters, a family of four taking a daily bath can reduce carbon dioxide emissions by 864kgs per year compared to traditional water heaters, equivalent to planting 72 trees on earth in a year. In other words, if three million families were using Dyhot's premixed combustion control water heaters in Taiwan, 2.59 billion kgs of carbon dioxide emissions could be reduced and two billion trees could be planted annually. Dyhot's original intention of developing premixed combustion control water heaters is not only for the benefit of people and the environment, but also to achieve a balance between bathing and energy conservation.



Of course, multiple security protections are also essential, complying with TGA standard safety regulations, such as flameout safety, anti-empty burning, anti-boiling, anti-overvoltage, anti-lightning, etc. Once an abnormal situation is detected, the system will immediately stop operation and display the error code on the operation panel to carry out self-diagnosis and maintenance.

Continuously hot water supply

When customers turn on the tap, Dyhot's premixed combustion control water heater system immediately detects the cold water temperature. Based on the pre-set hot water temperature and the amount of hot water required, it calculates the energy required to start the blower and input the appropriate gas amount, so the gas and air are fully mixed and sent to the burner before ignition. This intelligent detection system, combined with the vertical structure design of the patented heat exchanger for uniform heating, allows the water heaters to quickly produce a large amount of hot water, ensuring stable water temperature and pressure. This system completely solves the problem of the traditional instant water heater being limited by structural design, resulting in over-heating or under-heating and the loss of water pressure, which causes the "cold water sandwich effect".



  • Intelligent detection & Constant temperature and voltageProvides quick and large amounts of water, ensuring continuous hot water supply.

  • Circulatory system & instant heat

    Circulation pipeline eliminates the need to wait for hot water to heat up.

  • Large & Sufficient water supply

    Can serve the whole family simultaneously and even two Jacuzzis at the same time.
